Used PCB - Miscellaneous for sale

Axial Insertion Line UNIVERSAL VCD/SEQUENCER 88 with loader and unloader Hot deal

Spain 2011

Functionality	other

35,000 $

View product

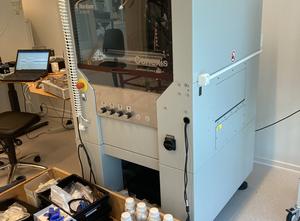

Nordson Asymtek CX-3040

Denmark 2017

Conexis comformal coating machine. Has only been used for offline trials.

24,000 $

View product

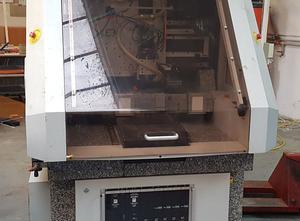

High speed PCB router Lenz RLG 470-2. Routers are used for PCB routing, composites cutting or alumuinum housings. Linear motors, linear guides. White granite frame. Year of Manufacture : 2006. Made in Germany 2x spindles 60.000RPM. Max. feed: 25m/min. Precision of possitioning +/-0,003. Repeteability +/-0,002. Travels X470 Y650 Z50 Table size: 900x755 Machine Dimensions W x D x H: 1550 x 1720 x 1820. Weight 3100kg Machine works (XYZ moves, cooling), see video bellow. Including chiller.

21,000 $

View product

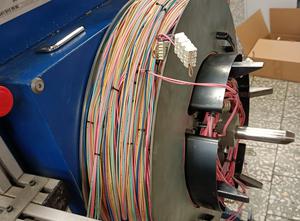

Ramatech AG SSX 1 PCB machine

Czech Republic 1994

Production of cable bundles (core bundles). Printing of connectors, clamping with a binding gun. According to the file, it stops at the correct length, the operator prints the connector and cuts the wires and then connects the connector at the correct length (see.file below), the whole bundle is wound on the winch, where the first connector is connected to the machine.

Price on request

View product

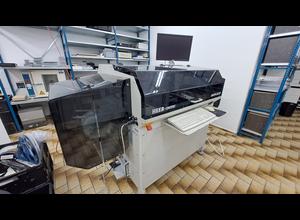

Heeb Innoplacer HP Printed Circuit Board machine

Germany 2001

The HEEB Inoplacer SMD placement machine is a highly efficient and flexible system for placing SMD components on printed circuit boards, which is particularly suitable for prototypes and small to medium series. Placement rate: It has a very high placement rate and can process up to 4,000 components per hour. Component handling: The machine can place a wide range of components from 0402 up to a size of 50 x 50 mm, including PLCCs, QFPs, and BGAs. Flexible: The machine is capable of placing from strips, with up to 200 component lines possible. Precision: The combination of laser centering and vision system ensures precise and reproducible SMD placement, even with the most advanced BGA and QFP package types. Ease of use: The machine is very easy to program and operate and has a compact design. Data transfer from Eagle and other CAD software is easy. The machine is ideal for fast prototyping and small series production as it can be quickly retooled. Mechanical design: The machine has a floor-standing steel construction. The X and Y axes are mounted on a highly stable machined steel plate. Ball-bearing linear guides are used in the X and Y axes. Drives: It uses AC …

17,000 $ Price is negotiable

View product

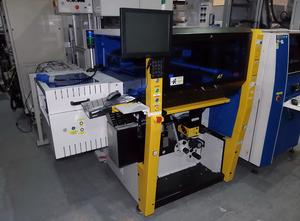

AT7X2M-SDI special parts application machine, RX Zhuhai Ruixiang Co. LTD

Hungary 2019

Nearly mint condition machine for the PCB manufacturing field, originally used for placing and sticking small aluminium heatsink plates on flexible LED strips. The machine works from a roll feeder unit and from bowl feeder unit also. The machine has AOI camera system embedded. Full comlete and clean machine. This machine could be used as for pick & place gear for small special parts mounting on PCBs, such like small insulating blocks, metal heatsink plates, flat part inserter, etc. The maximum rating on mountable part is about 25x25x3mm. This machine can be altered for different sizes of applicable materials. It was in production line for not more than 1 year.

34,500 $

View product

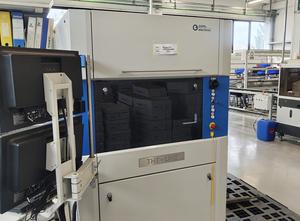

GOPEL ELETRONIC OPTICON THT LINE PCB machine

Italy 2015

Title: OPTICAL INSPECTION SYSTEM FOR AOI OPTICON THT LINE PRINTED CIRCUITS Brand: GOPEL ELECTRONIC Model: OPTICON THT LINE Year of manufacture: 2015 Technical condition: excellent Condition: in operation

Price on request

View product

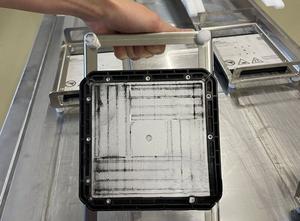

Beckhoff X-Planar Testanlage Printed Circuit Board machine

Germany 2021

The X-Planar was used purely for testing purposes and is therefore like new. The system consists of the following parts: - 20 tiles APS1003-0000 X-Planar tile 110/230VAC 24VDC 240x240 mm - 11 movers APM1003-0000 APM4330-0000-0000 Protection Class iP40 Max temp. 65°C 155x155x12 mm - 5 drive controllers Beckhoff AX8000 1x AX8620-0000 4x AX8206-0210 1x AX8108-0200 Hsbh Hubsimr Ruoaponw - 1 control system C6670-0010 Date: 14 January 2021 Mainboard: S2600STBR - 1 control cabinet with ventilation H = 195, W = 101, D = 42 cm - 1 table with cover plate L = 258, W = 64, H = 6.5 cm - 1 touchscreen display CP3918-0010 Date: 11 October 2019 If you have any questions, please do not hesitate to contact us.

Price on request

View product

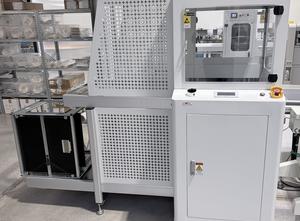

ILJIN ALD-12CE(2X) Magazine Board loader Low working hours

Italy 2015

Functionality	other

8,670 $ Price is negotiable

View product

Sell your machines to buyers worldwide

Join 10,000+ companies already selling with us

Reach 500,000+ monthly visitors

Sell faster at a great price

No hidden fees, it's free

Sell your machine

or contact us

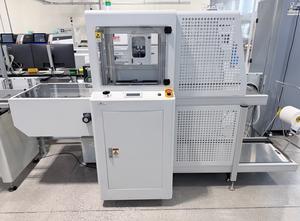

ILJIN AUD-12CE(2X) Magazine Board Un-loader Low working hours

Italy 2015

Functionality	other

12,000 $ Price is negotiable

View product

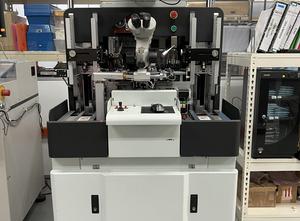

Sprint T 01 High speed Automatic Wire Bonder

Malaysia ~ 2012

High speed Automatic Wire Bonder Highly productive and always aiming for zero defects: the fully automatic, compact wire bonder SPRINT-T 01 was adapted to the special requirements of mass production of power semiconductors and power modules in the automotive industry.

9,750 $

View product

Matrix Technologies Gmbh (Nordson) X3# Printed Circuit Board machine

Italy 2016

Industrial in-line X-ray inspection system. This is a powerful and fast, fully digital 2D X-ray inspection system for non-destructive testing of electronic boards, ideal for analyzing voids in short welds and other defects. Perfect for analyzing large volumes in a very short time. The machine has been used as a demo and has very few hours of active use of the X-ray tube. For technical details, see the attachments. Accessories included: flat screen CMOS, loading and unloading system (Loader and Unloader). Last maintenance: 2024. Condition: used in EXCELLENT condition.

Price on request

View product

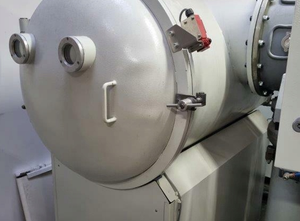

Vacuum Sputtering machine PCB machine

Poland

For sale vacuum sputtering machine with a large working chamber and accessories for vacuum metallization. The machine after a major overhaul, all the automation has been replaced with a new one. To operate has been assembled operator panel through which there is control over all parameters of the device.

Price on request

View product

Siemens SIMATIC PCS 7 STEP 7 WinCC Engineering, Workstation IPC547D - complete Legacy Environment /BONUS

Finland 2013

Type: Industrial Rack PC / Engineering Workstation Application: Siemens PCS 7 / WinCC Classic engineering station used in real industrial automation projects. Operating System: Windows 7 Ultimate (32-bit, OEM Siemens) CPU: Intel Core i5-2400 @ 3.10 GHz RAM: 8 GB installed Hardware: Original Siemens industrial IPC hardware Installed Engineering Software: Siemens PCS 7 Engineering System STEP 7 Professional V5.5 PCS 7 CFC Unlimited PCS 7 Distributed Safety WinCC V7.x Configuration WinCC Server WinCC Redundancy WinCC Runtime / Configuration WinCC Advanced Process Control (APC) WinCC flexible 2008 (Advanced, Standard, Compact, Runtime, OPC, Audit, Archives, SmartAccess, SmartService) SIMOTION SCOUT SIMOTION CamTool DCC Editor SIMOTION / SINAMICS SIMATIC WinAC MP Additional Siemens options visible in Siemens Automation License Manager License Status: Installed, active, floating/unlimited licenses bound to workstation License Manager: Siemens Automation License Manager installed and operational Media Included: Original Siemens CDs/DVDs USB license media Emergency license media Floating license media Certificate of License (COL) Original Siemens software boxes: SIMATIC STEP 7 V5.4 Upgrade 6ES7810-4CC08-0YE5 SIMATIC PDM V6.0 SP2 HF1 PCS 7 (128 TAGs) 6ES7658-3LX06-0YA5 SIMATIC WinCC flexible 2007 Advanced 6AV6613-0AA51-2CE5 SIMATIC S7-PLCSIM V5.3 6ES7841-0CC04-0YA5 SIMATIC WinCC flexible 2008 Advanced 6AV6613-0AA51-3CE5 SIMATIC WinCC Connectivity Pack V6.1 6AV6371-1DR06-1AX0 Siemens SIMATIC PCS 7 V6.1 SP1 …

9,260 $

View product

JOT AUTOMATION J214-51.3/20 FIFO Buffer

Croatia 2012

Offer Title: JOT AUTOMATION J214-51.3/20 FIFO Buffer Manufacturer: JOT AUTOMATION Model: J214-51.3/20 Year of Manufacture: 2012 Technical Condition: As-is, where-is

3,360 $

View product

Lampade Industriali Magrini Galileo

Italy 1997

100 lampade Industriali Anno 1997 Trifase Isolamento: 24/50/125 Peso cad: 1,7 Kg

1,770 $

View product

EKRA XPRT5 automated solder paste printing machine

Bulgaria 2007

The EKRA XPRT5 is a fully automated solder paste printing machine. Key features include 460 x 460 mm print area , and high accuracy with alignment repeatability of ±12.5µm or ±15µm @ 6 sigma, automatic cleaning and vision systems.

6,900 $ Price is negotiable

View product

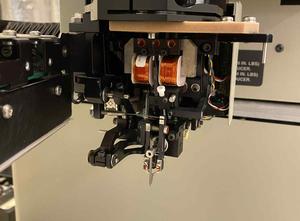

Orthodyne 360B and 360C Wire Bonders

Norway

Orthodyne 5 mils al bonder and one Orthodyne 1 mil al wire Need spare part or use as a spare Two wire bonders that can be sold to who is in need for spares: 360B (heavy wire 125 my) Complete. In working order for a few years ago. Not tested lately. Rotary table included if desired. 360C (thin wire 32my) For spare parts. Faulty CPU board ,XY table , monitors and microscope is not included ( see pictures) . Some tools and spare parts for both bonders are included.

4,310 $

View product

Ecatech ECA 2000 H PCB machine Hot deal

Czech Republic 2018

Ultrasonic misting device ECA 2000 H Ultrasonic misting device ECA 2000 H Ultrasonic fogger ECA 800 H more at: https://simplyclean.cz/ecatech-eca-2000

2,940 $

View product

Essemtec SPIDER PCB machine

Poland 2017

Both machines are in the same configuration, they differ in the year of production: the first machine is from 2017 and the second from 2019.

Price on request

View product
